1、Basic product information

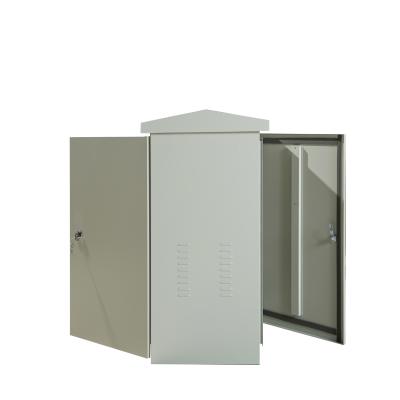

Product name：Standing Floor Outdoor Waterproof Telecom Cabinet
Name：IP23 Outdoor Network Cabinet
Specifications：6U, 9U, 12U, 15U, 18U, 22U
Material quality：Cold Rolled Steel Panels
Color：Light Grey
2、Product attributes
Brand：HTYZ
Model: Outdoor Network Cabinet
Country of origin：Hebei
3、Custom properties
Color：Light Grey
Material quality：Cold Rolled Steel Panels
Function：The IP23 outdoor network cabinet, which are also referred to as telecommunications cabinets, are fully enclosed cabinets that help protect electrical cabling and other equipment from potentially damaging environments.
4、Trading information
Minimum order：50pcs
Terms of payment：T/T in advance
Supply capacity：10000/week
40000/month
480000/year
Conventional packaging：Carton Box, Wooden Pallet, Wooden Case
| IP Code | Size | Model # | Specifications (mm) | Panel Thickness | Installation Column Thickness | ||
| Height | Width | Depth | |||||
| IP23 | 6U | FYX.6406 | 350 | 600 | 450 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 9U | FYX.6409 | 500 | 600 | 450 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 12U | FYX.6412 | 640 | 600 | 450 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 15U | FYX.6415 | 800 | 600 | 450 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 18U | FYX.6418 | 1000 | 600 | 450 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 12U | FYX.6612 | 640 | 600 | 600 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 15U | FYX.6615 | 800 | 600 | 600 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 18U | FYX.6618 | 1000 | 600 | 600 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 22U | FYX.6622 | 1200 | 600 | 600 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 32U | FYX.6632 | 1600 | 600 | 600 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 37U | FYX.6637 | 1800 | 600 | 600 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
| IP23 | 42U | FYX.6642 | 2000 | 600 | 600 | ≥0.9 ~ ≤1.0mm | ≥1.4~ ≤1.5mm |
