Race II 22U Network Cabinet Race II 22U Network Cabinet Race II 22U Network Cabinet

< >

点击空白处返回
Contact Now

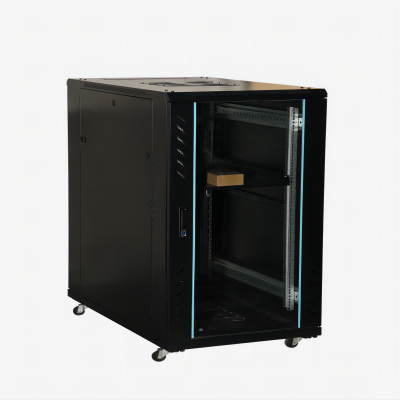

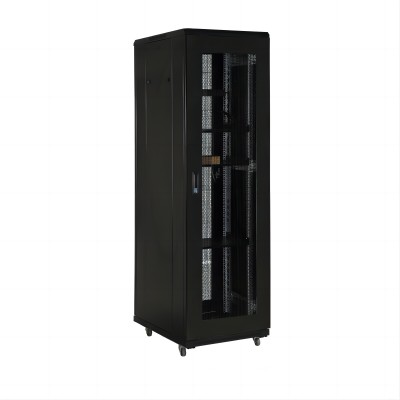

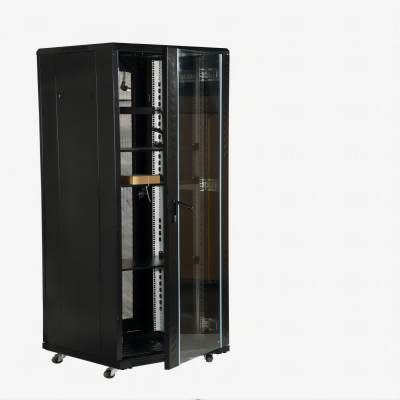

Race II 22U Network Cabinet

Categories :
Contact Now
  • Description
  • Product Parameter
  • Construction Darwing
  • Slection Chart

1、Basic product information
Product name：Factory Price Server Network Cabinet
Name：Network Cabinet Server Rack
Specifications：12U, 15U, 18U, 22U, 32U, 37U, 42U
Material quality：Cold Rolled Steel Panels
Color：Black

2、Product attributes
Brand：HTYZ
Model: RACE II Server Network Cabinet
Country of origin：Hebei

3、Custom properties
Color：Black
Material quality：Cold Rolled Steel Panel
Function： RACE II Series server network cabinet is the premium rack enclosure cabinet in HTYZ product line. They are made by SPCC Cold Rolled Steel Plate, stability and durability, Strong Loading Capacity. This series network cabinet that accommodates all standard 19-inch rack mount equipment and ships fully assembled for quick and easy deployment in secure, high-density server and IT networking environments.

4、Trading information
Minimum order：50pcs
Terms of payment：T/T in advance
Supply capacity：10000/week
40000/month
480000/year
Conventional packaging：Carton Box, Wooden Pallet, Wooden Case

5、Product description

Product Capacity Model Type Size（mm） Panel Thickness
Race II 12U TC.6612 600L*600W*600Dmm 0.8~0.9mm
Race II 12U TC.6812 600L*600W*800Dmm 0.8~0.9mm
Race II 15U TC.6615 800L*600W*600Dmm 0.8~0.9mm
Race II 15U TC.8815 800L*800W*800Dmm 0.8~0.9mm
Race II 18U TC.6618 1000L*600W*600Dmm 0.8~0.9mm
Race II 18U TC.6818 1000L*600W*800Dmm 0.8~0.9mm
Race II 22U TC.6622 1200L*600W*600Dmm 0.8~0.9mm
Race II 22U TC.6822 1200L*600W*800Dmm 0.8~0.9mm
Race II 22U TC.6922 1200L*600W*900Dmm 0.8~0.9mm
Race II 22U TC.6022 1200L*600W*1000Dmm 0.8~0.9mm
Race II 22U TC.8822 1000L*800W*800Dmm 0.8~0.9mm
Race II 32U TC.6632 1600L*600W*600Dmm 0.8~0.9mm
Race II 32U TC.6832 1600L*600W*800Dmm 0.8~0.9mm
Race II 32U TC.6932 1600L*600W*900Dmm 0.8~0.9mm
Race II 32U TC.6032 1600L*600W*1000Dmm 0.8~0.9mm
Race II 37U TC.6637 1800L*600W*600Dmm 0.8~0.9mm
Race II 37U TC.6837 1800L*600W*800Dmm 0.8~0.9mm
Race II 37U TC.6937 1800L*600W*900Dmm 0.8~0.9mm
Race II 37U TC.6037 1800L*600W*1000Dmm 0.8~0.9mm
Race II 42U TC.6642 2000L*600W*600Dmm 0.8~0.9mm
Race II 42U TC.6842 2000L*600W*800Dmm 0.8~0.9mm
Race II 42U TC.6942 2000L*600W*900Dmm 0.8~0.9mm
Race II 42U TC.6042 2000L*600W*1000Dmm 0.8~0.9mm
