1、Basic product information
Product name：Wall Mounted Network Cabinet
Specifications：4U, 6U, 9U, 12U,15U,18U,22U
Material quality：Cold Rolled Steel Panels
Color：Black/Light Grey
2、Product attributes
Brand：HTYZ
Model: 450D Wall Mount Network Cabinet
Country of origin：Hebei
3、Custom properties
Color：Black/Light Grey
Material quality：Cold Rolled Steel Panels

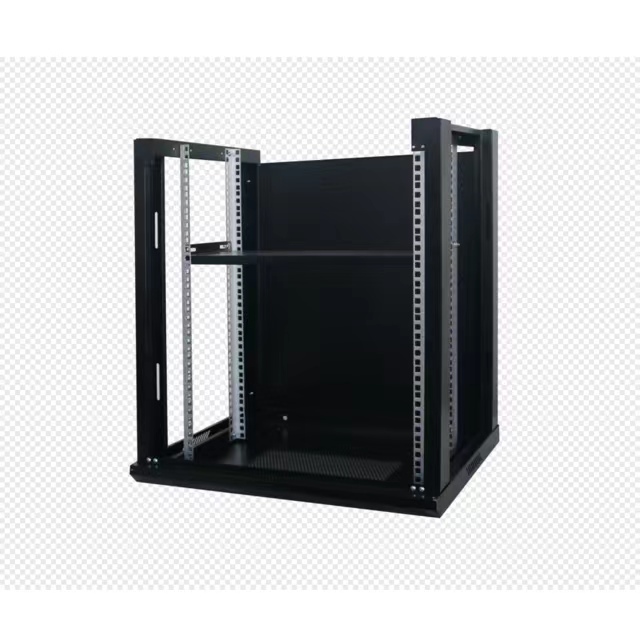

Function：Wall mount racks are primarily used for network equipment, such as 19 inch switches and pitch panels etc, also these servers can be mounted vertically in the rack.
4、Trading information
Minimum order：50pcs
Terms of payment：T/T in advance
Supply capacity：10000/week
40000/month
480000/year
Conventional packaging：Carton Box, Wooden Pallet, Wooden Case
5、Product description
| Product Series |
Size | Model # | Specifications (mm) | Panel Thickness | Installation Column Thickness | ||
| Height | Width | Depth | |||||
| 450D | 4U | MT.6404S | 270 | 600 | 450 | ≥0.8 ~ ≤0.9mm | ≥1.4 ~ ≤1.5mm |

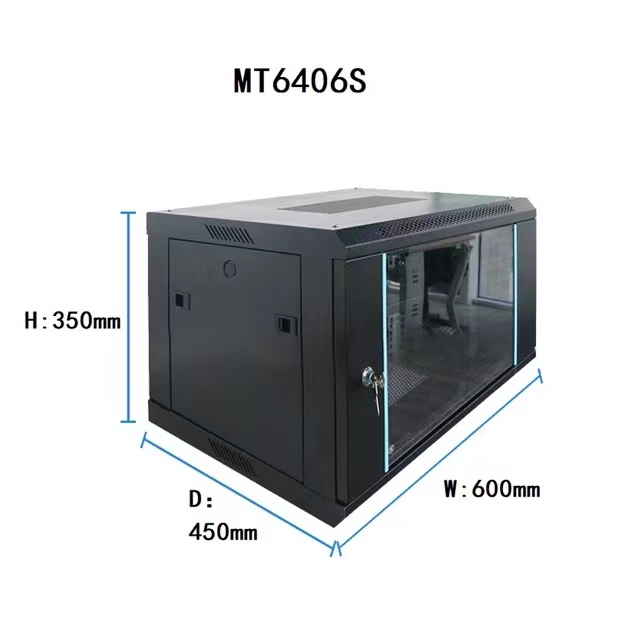

| 450D | 6U | MT.6406S | 350 | 600 | 450 | ≥0.8 ~ ≤0.9mm | ≥1.4 ~ ≤1.5mm |
| 450D | 9U | MT.6409S | 500 | 600 | 450 | ≥0.8 ~ ≤0.9mm | ≥1.4 ~ ≤1.5mm |
| 450D | 12U | MT.6412S | 640 | 600 | 450 | ≥0.8 ~ ≤0.9mm | ≥1.4 ~ ≤1.5mm |
| 450D | 15U | MT.6415S | 800 | 600 | 450 | ≥0.8 ~ ≤0.9mm | ≥1.4 ~ ≤1.5mm |
| 450D | 18U | MT.6418S | 1000 | 600 | 450 | ≥0.8 ~ ≤0.9mm | ≥1.4 ~ ≤1.5mm |
| 450D | 22U | MT.6422S | 1200 | 600 | 450 | ≥0.8 ~ ≤0.9mm | ≥1.4 ~ ≤1.5mm |
